Table Top 12W - 120W



Features

  1. Efficiency More than 86%.
  2. Input & Output fully Protection.
  3. Minimum Noise ripple.
  4. Less than 0.5% Line regulation.
  5. Less than 5% Load regulation.
  6. Sustainable in worse input power condition.
  7. Short circuit protection.
  8. Over load protection.
  9. Surge voltage protection up to 2KV.
  10. Soft start System.

SMPS 12W

Specifications

Model Voltage Range Current Cap. Wattage Enclosure Dimension
L X W X H
(mm)
SM1205A 12VDC 0.5Amp. 6W ABS Body 70 X 47 X 30
SM1210A 12VDC 1 Amp. 12W ABS Body 70 X 47 X 30
SM0510A 5VDC 1 Amp. 5W ABS Body 70 X 47 X 30
SM0610A 6VDC 1 Amp. 6W ABS Body 70 X 47 X 30
SM0810A 8VDC 1 Amp. 8W ABS Body 70 X 47 X 30
SM0520A 5VDC 2 Amp. 10W ABS Body 70 X 47 X 30
SM0620A 6VDC 2 Amp. 12W ABS Body 70 X 47 X 30

SMPS 36W


Specifications

Operating Voltage - 230VAC / 50Hz (140VAC - 280VAC)

Model Voltage Range Current Cap. Wattage Enclosure Dimension
L X W X H
(mm)
SM1220A 12VDC 2 Amp. 24W ABS Body 113 X 49 X 30
SM0920A 9VDC 2 Amp. 18W ABS Body 113 X 49 X 30
SM1230A 12VDC 3 Amp. 36W ABS Body 113 X 49 X 30
SM0930A 9VDC 3 Amp. 27W ABS Body 113 X 49 X 30
SM2415A 24VDC 1.5 Amp. 36W ABS Body 113 X 49 X 30

SMPS 72W


Specifications

Operating Voltage - 230VAC / 50Hz (140VAC - 280VAC)

Model Voltage Range Current Cap. Wattage Enclosure Dimension
L X W X H
(mm)
SM2420A 24VDC 2 Amp. 48W ABS Body 125 X 60 X 37
SM2430A 24VDC 3 Amp. 72W ABS Body 125 X 60 X 37
SM2440A 24VDC 4 Amp. 96W ABS Body 125 X 60 X 37
SM1250A 12VDC 5 Amp. 60W ABS Body 125 X 60 X 37
SM3620A 36VDC 2 Amp. 72W ABS Body 125 X 60 X 37

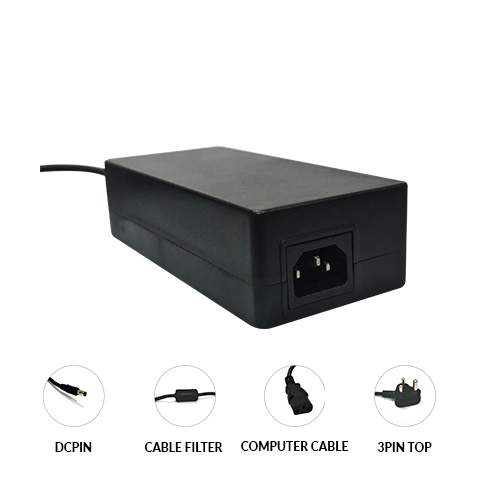

SMPS 120W


Specifications

Operating Voltage - 230VAC / 50Hz (140VAC - 280VAC)

Model Voltage Range Current Cap. Wattage Enclosure Dimension
L X W X H
(mm)
SM3630A 36VDC 3 Amp. 108W ABS Body 161 X 76 X 46
SM4830A 48VDC 3 Amp. 144W ABS Body 161 X 76 X 46
SM2450A 24VDC 5 Amp. 120W ABS Body 161 X 76 X 46
SM12100A 12VDC 10 Amp. 120W ABS Body 161 X 76 X 46
