• 9. Soft start System
  • 10. Battery Reverse protection available
  • 11. Deep discharge Charging capability
  • 12. Over chorge,Temperoture& Voltage Protection
  • 13. Enhances the Battery life
  • 14. 4 Stage Charging ( Trickle, CC, CV, Float ) with Boost stage
  • 15. Application for EV Battery Charging

Features

  • 1. High efficiency & low energy consumption
  • 2. 3 Colour LED indication
  • 3. Short circuit protection with auto restart
  • 4. Surge voltage protection up to 6KV
  • 5. Input &Output fully Protection
  • 6. Minimum Noise ripple
  • 7. Less than 0.5% Line regulation
  • 8. Sustainable in worse input power condition

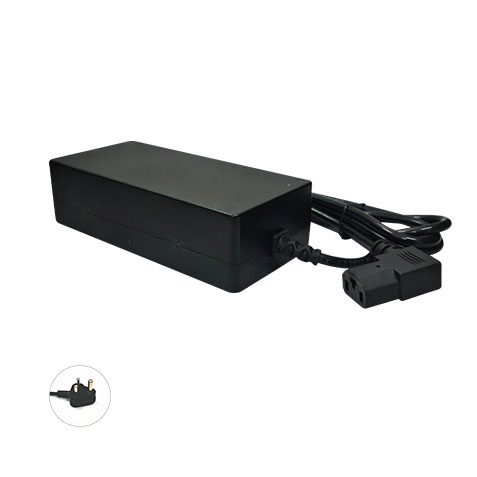

EVC 72W


Specifications

Operating Voltage - 140VAC - 280VAC / 50Hz

Model Voltage Range Current Cap. Wattage Enclosure Dimension
L X W X H
(mm)
EVC1250A 12VDC 5 Amp. 60W ABS BODY 161 X 76 X 46

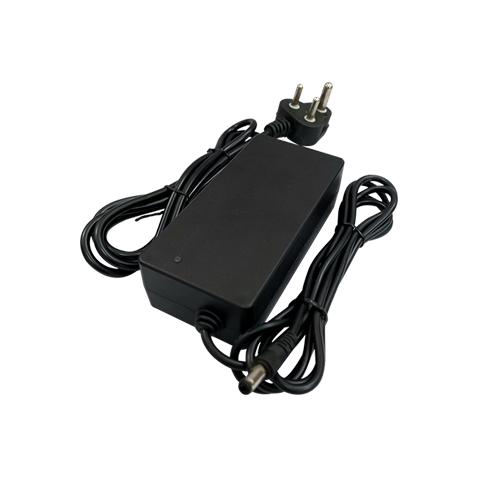

EVC2430A 24VDC 3 Amp. 72W ABS BODY 161 X 76 X 46
EVC3620A 36VDC 2 Amp. 72W ABS BODY 161 X 76 X 46



EVC 240W


Specifications

Operating Voltage - 140VAC - 280VAC / 50Hz

Model Voltage Range Current Cap. Wattage Enclosure Dimension
L X W X H
(mm)

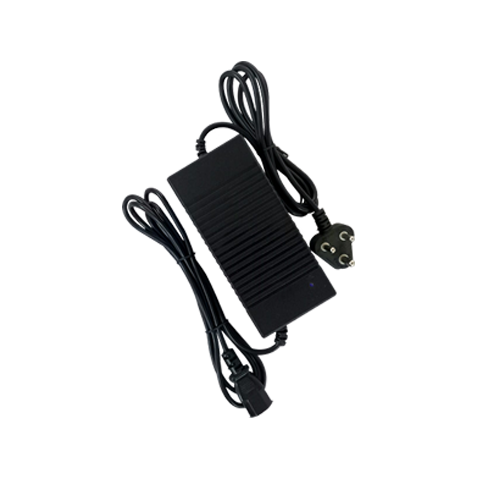

EVC4830A 48VDC 3 Amp. 144W ABS Body 175 X 95 X 55
EVC4860A 48VDC 6 Amp. 288W ABS Body 175 X 95 X 55
EVC3630A 36VDC 3 Amp. 108W ABS Body 175 X 95 X 55
EVC3650A 36VDC 5 Amp. 180W ABS Body 175 X 95 X 55
EVC6030A 60VDC 3 Amp. 180W ABS Body 175 X 95 X 55
EVC2450A 24VDC 5 Amp. 120W ABS Body 175 X 95 X 55
