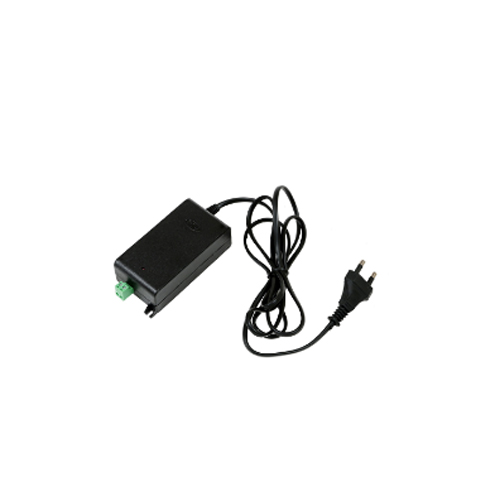

SMPS for CCTV



Features

  1. Stabilized output & low interference.
  2. High efficiency & low energy consumption.
  3. Power LED indication.
  4. Short circuit protection with auto restart.
  5. Over load protection (separately for all channels).
  6. Surge voltage protection up to 3kv.
  7. Output Voltage adjustable as per cable length.
  8. Application for CCTV camera.


Specifications

Operating Voltage - 230VAC / 50Hz (140VAC - 280VAC)

Application for Single & Double Channel CCTV Camera

Model Voltage Range Current Cap. Wattage Enclosure Dimension
L X W X H
(mm)
CC1220AC 12VDC 2Amp. 24W ABS Body 105 X 55 X 35



Specifications

Operating Voltage - 230VAC / 50Hz (140VAC - 280VAC)

Application for 4 Channel CCTV Camera

Model Voltage Range Current Cap.
each channel 		Wattage Enclosure Dimension
L X W X H
(mm)
CC1250AC 12VDC 1Amp. 60W ABS Body 145 X 95 X 35

Specifications

Operating Voltage - 230VAC / 50Hz (140VAC - 280VAC)

Application for 8 Channel CCTV Camera

Model Voltage Range Current Cap.
each channel 		Wattage Enclosure Dimension
L X W X H
(mm)
CC1280AC 12VDC 1Amp. 96W ABS Body 145 X 107 X 35
