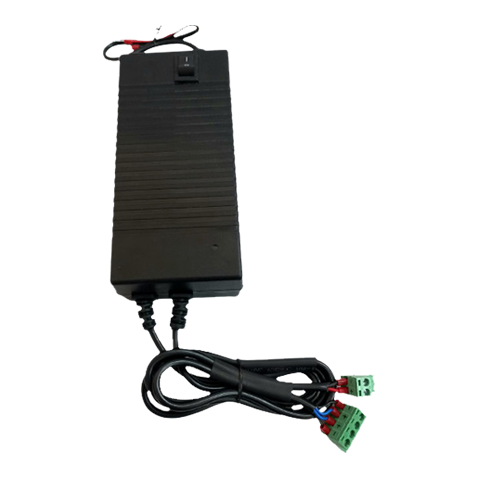

Elevator SMPS
Features
- High Efficiency & low energy consumption
- Power LED indication
- Short circuit protection with auto restart
- Compact size
- Surge voltage protection up to 6 KV
- Input and Output fully Protection
- Minimum Noise ripple
- Less than 0.5% Line regulation
- Less than 5% Load regulation
- Sustainable in worse input power condition
- Soft start System
- With ON-OFF Switch
- Application for ELEVATORS & ESCALATOR
SMPS 135W
Specifications
Operating Voltage - 230VAC / 50Hz (100VAC - 280VAC)
| Model | Voltage Range | Current cap | Wattage | Enclosure | Dimension L X W X H (mm) |
|---|---|---|---|---|---|
| O/P CH1 - 24VDC | 5 Amp. | 120W | |||
| SM2450D1210A | O/P CH2 - 12VDC | 0.5 Amp. | 6W | ABS Body | 161 X 76 X 46 |
| O/P CH3 - 12VDC | 0.5 Amp. | 6W |
SMPS 120W
Specifications
Operating Voltage - 230VAC / 50Hz (100VAC - 280VAC)
| Model | Voltage Range | Current cap | Wattage | Enclosure | Dimension L X W X H (mm) |
|---|---|---|---|---|---|
| SM2450A | 24VDC | 5 Amp. | 120W | ABS BODY | 130 X 98 X 40 |
| SM12100A | 12VDC | 10 Amp. | 120W | ABS BODY | 130 X 98 X 40 |
