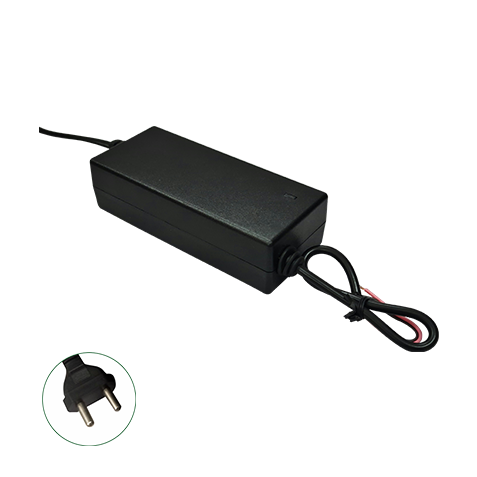

Table Top 36W



Features

  1. Efficiency More than other Ordinary brands.
  2. Input & Output fully Protection.
  3. Minimum Noise ripple.
  4. Less than 0.1% Line regulation.
  5. Less than 3%Load regulation.
  6. Sustainable in worse input power condition.
  7. Short circuit protection.
  8. Surge voltage protection up to 2KV.
  9. Soft start System.

Specifications

Operating Voltage - 230VAC / 50Hz (140VAC - 280VAC)

Model Voltage Range Current Cap. Wattage Enclosure Dimension
L X W X H
(mm)
SM2415TA 24VDC 1.5Amp. 36W ABS Body 105 X 55 X 35
SM1220TA 12VDC 2Amp. 24W ABS Body 105 X 55 X 35
SM0550TA 5VDC 5Amp. 25W ABS Body 105 X 55 X 35
